Flexibility for All Music

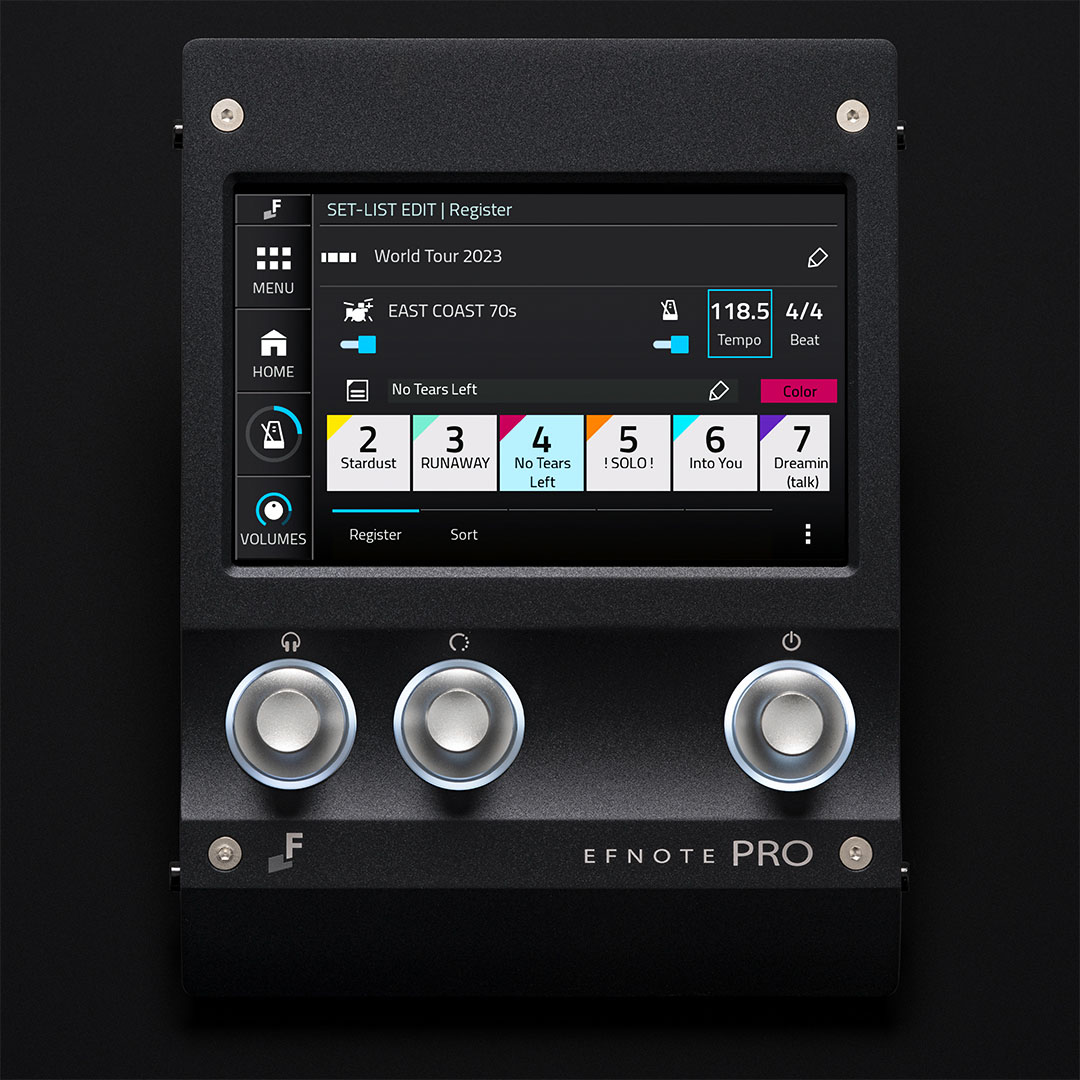

EFNOTE PRO supports 7 shells and 8 cymbals. All pads are individually wired, so players can adapt to any musical environment. All sound settings can be quickly saved and loaded, for multiple players and Set Lists at any time. With a full 12 CH of multitrack USB Audio and 16 CH USB MIDI simultaneously, allowing a drummer, producer or mixer access to quick editing/ replacement, in order to meet Artist’s budget requirements.

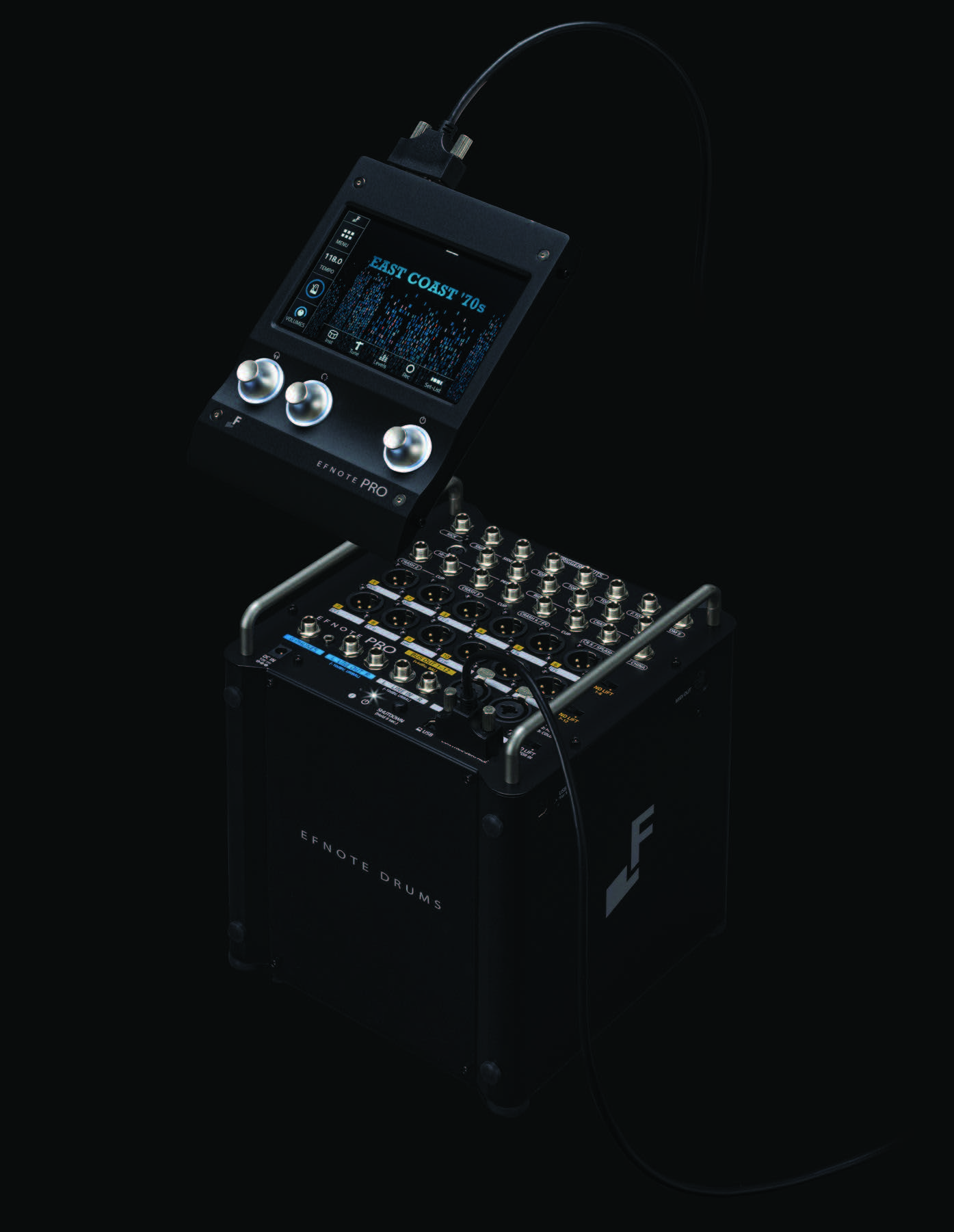

Innovative Two-Piece Design

• The two-piece sound module provides both operability and expandability required by professionals
• Low-profile and compact control surface with touch-screen full-color LCD
• Floor-standing base unit with robust enclosure and reliable cable connections

Foot Light for Your Feet

• A foot light is equipped on the bottom of the surface controller to help setting up
• Can be turned on and off as needed

Contains Legendary Drums Sets

• The delicate resonance of aged shells are newly captured, recorded by EFNOTE
• Raw and organic, NOT synthetic and electronic
• Includes maple, birch, acrylic, steel, aluminum, brass, titanium shells, even a towel-muted sound

Diverse Cymbal Collection

• Our mint selection, from bright and crisp modern sounds to dark and soft vintage sounds
• Contains modern trash/effect/stacked cymbal sounds

Instrument Expansion

• New sounds (drum sounds only) will be published on the Instrument Library web page and will be loadable

High-Powered Headphone Amp

• 1x 1/4″ jack + 1x 1/8″ jack for headphones (can be used simultaneously)
• Dedicated 2x headphone amp circuit for enough loudness
• High quality DAC and audio circuit

7 Shells and 8 Cymbals

• Build a custom kit for any stage
• 5x 2-zone input for toms
• 6x 3-zone, 2x 2-zone input for cymbals
• Traditional individual trigger connections (TRS), for professional reliability

ELISE™ Sensing Processor 2.0

• We’ve evolved, delivering improved sensitivity for capturing your most delicate touch
• The new algorithm for even more natural dynamics

Full Drum Pad Lineup

• Birch wood shells and 2-ply mesh drum heads
• Multi-sensor for hot-spotless and high-resolution sounding
• 20” and 16” kick drums
• 14” and 12” snare drums
• 8”, 10”, 11” rack toms
• 12”, 13”, 15” floor toms

“World’s First” Cymbal Pads

• Tru-Motion™ 14” hi-hat cymbal
• 8” to 20” full size cymbal lineup, the first of their kind
• New 18” China cymbal and 17” effect cymbal with stackable/suspendable STAK™ mount

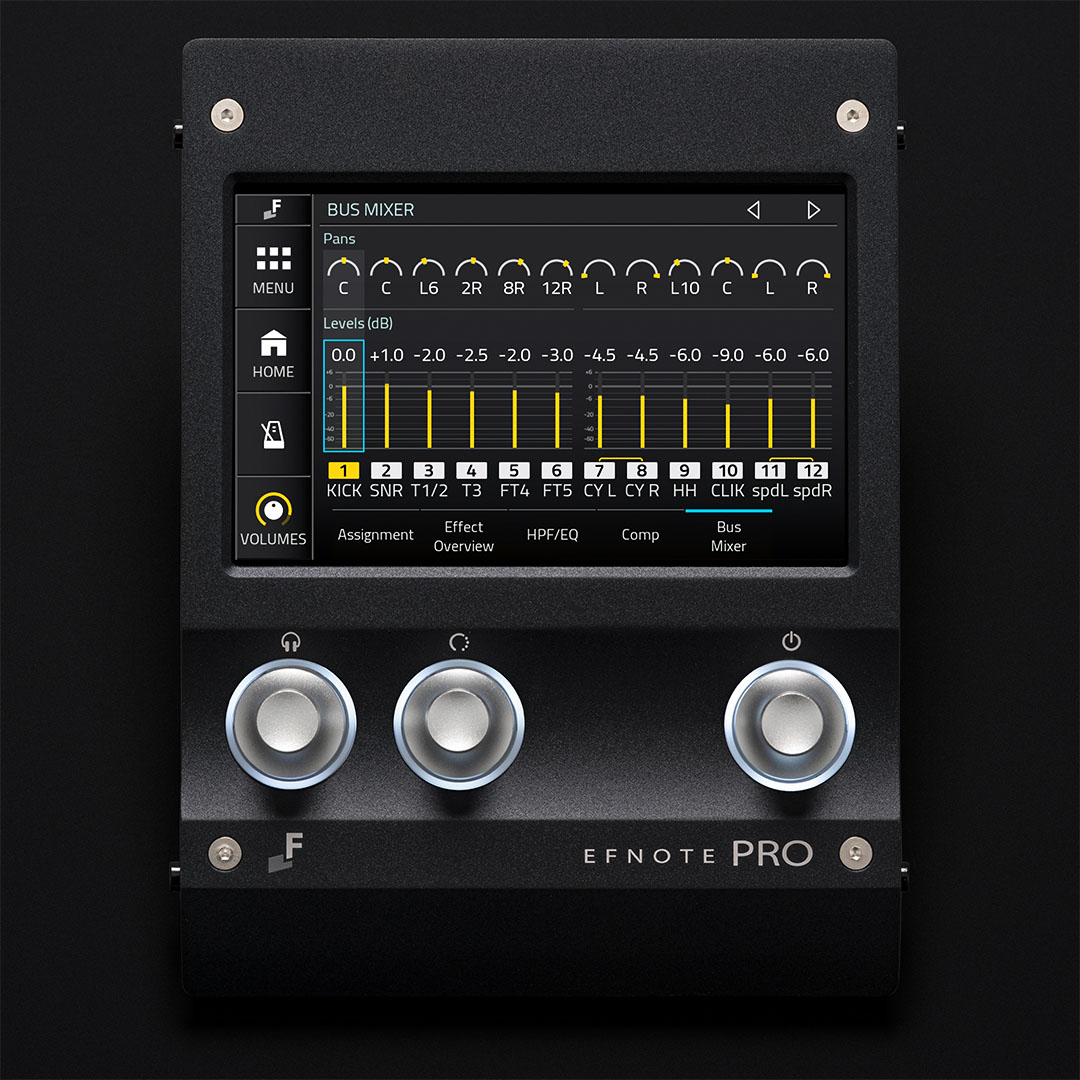

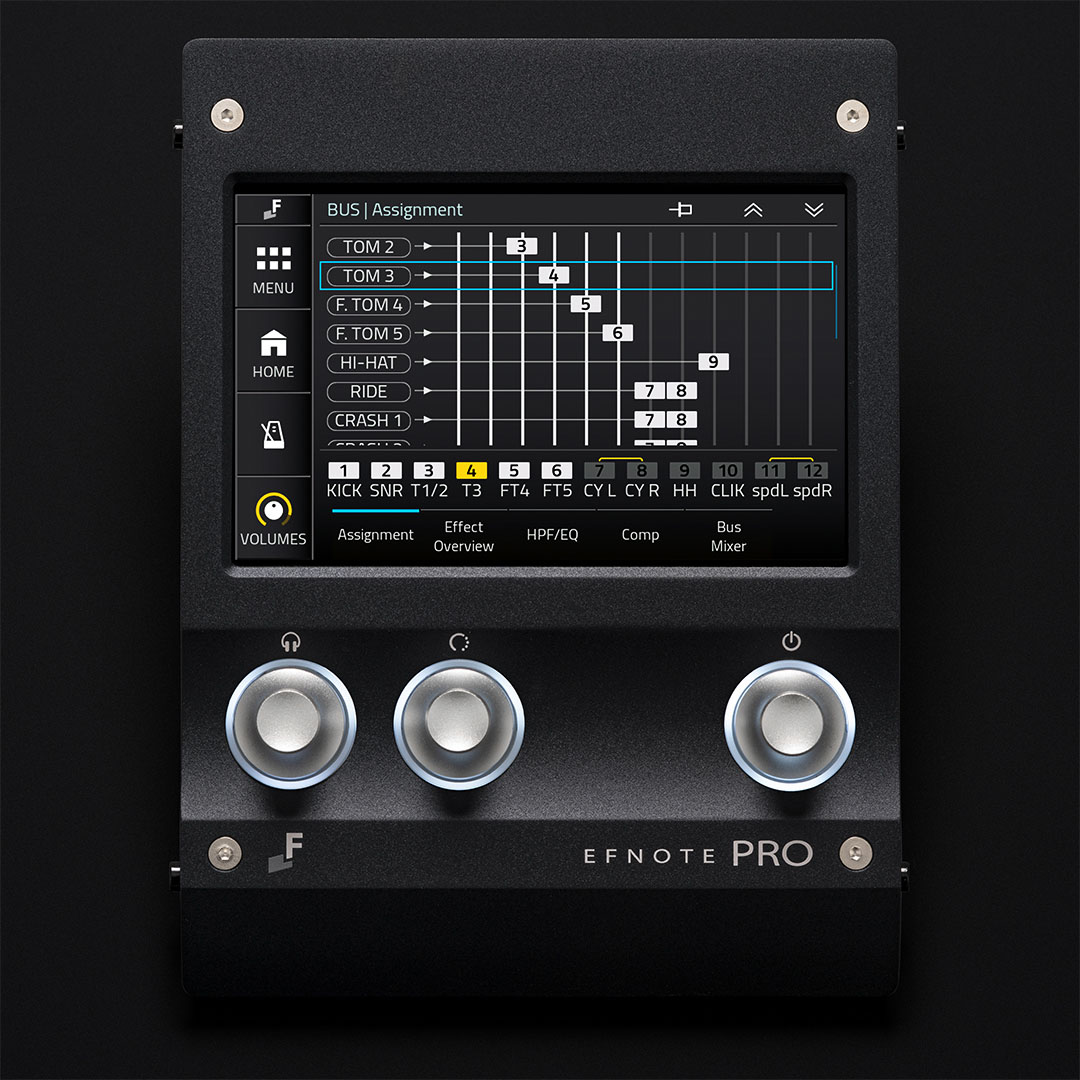

12-ch Buses to the Console

• 12-ch buses, and 12x XLR balanced bus output

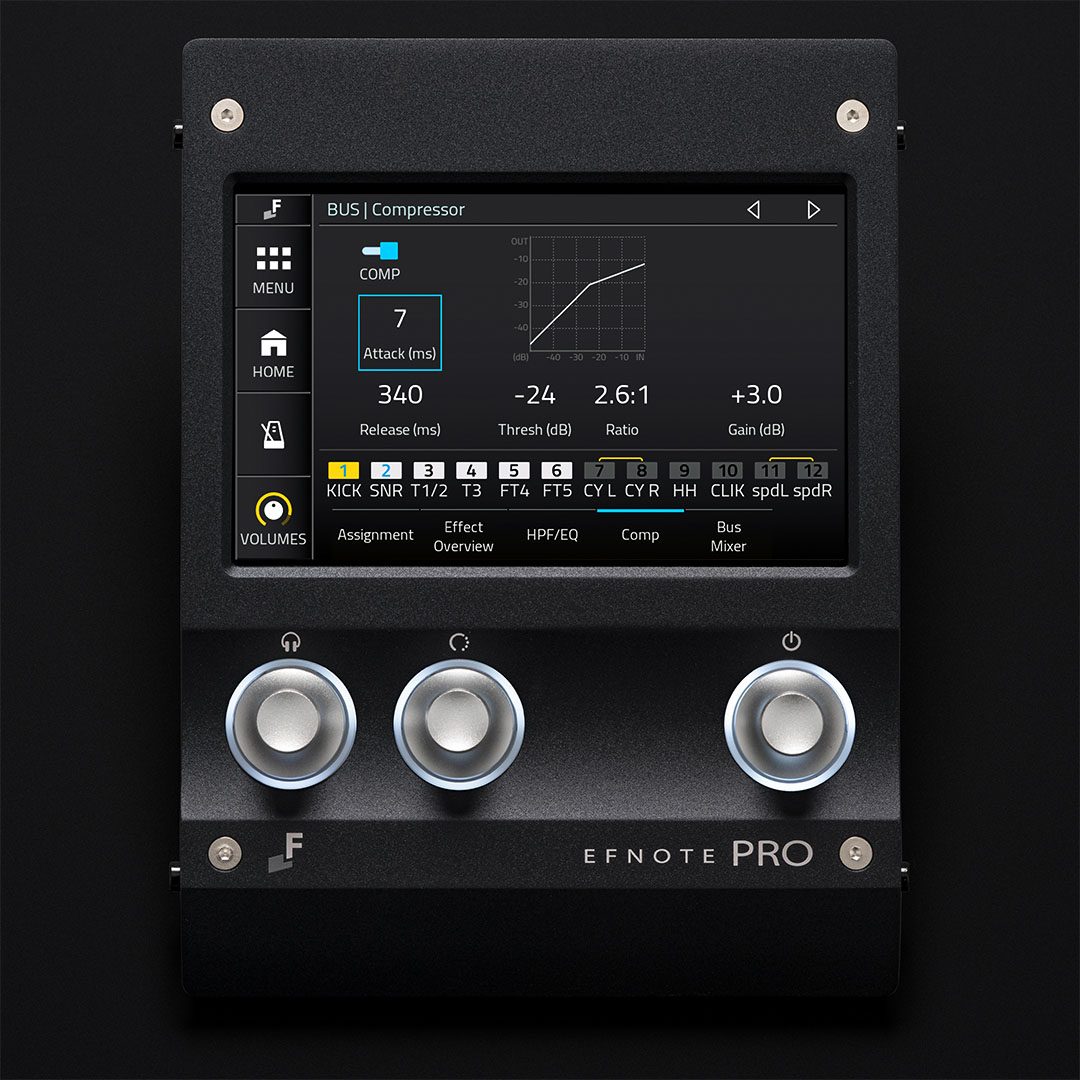

• Dedicated bus compression for Bus 1 to 6
• HPF and 2-band EQs for Bus 1 to 12
• Stereo-Link for two adjacent buses
• Ground lift switches

XLR Inputs from the Console

• 2-ch Monitor In (XLR balanced) for monitoring return from the console
• 2-ch Line In (TS unbalanced) for an additional sampling/percussion pad
• Ground lift switch for Monitor In

USB 12-ch Multi-Track Recording

• Simultaneous recording of 12-ch multi-track Audio and multi-track MIDI is available
• Confirmed with major DAWs
• 5-pin DIN MIDI Out

Bluetooth®

• Wireless connection with a smartphone or tablet for playing along
• (EFNOTE app will be available)
