Xjam
Pad Controller

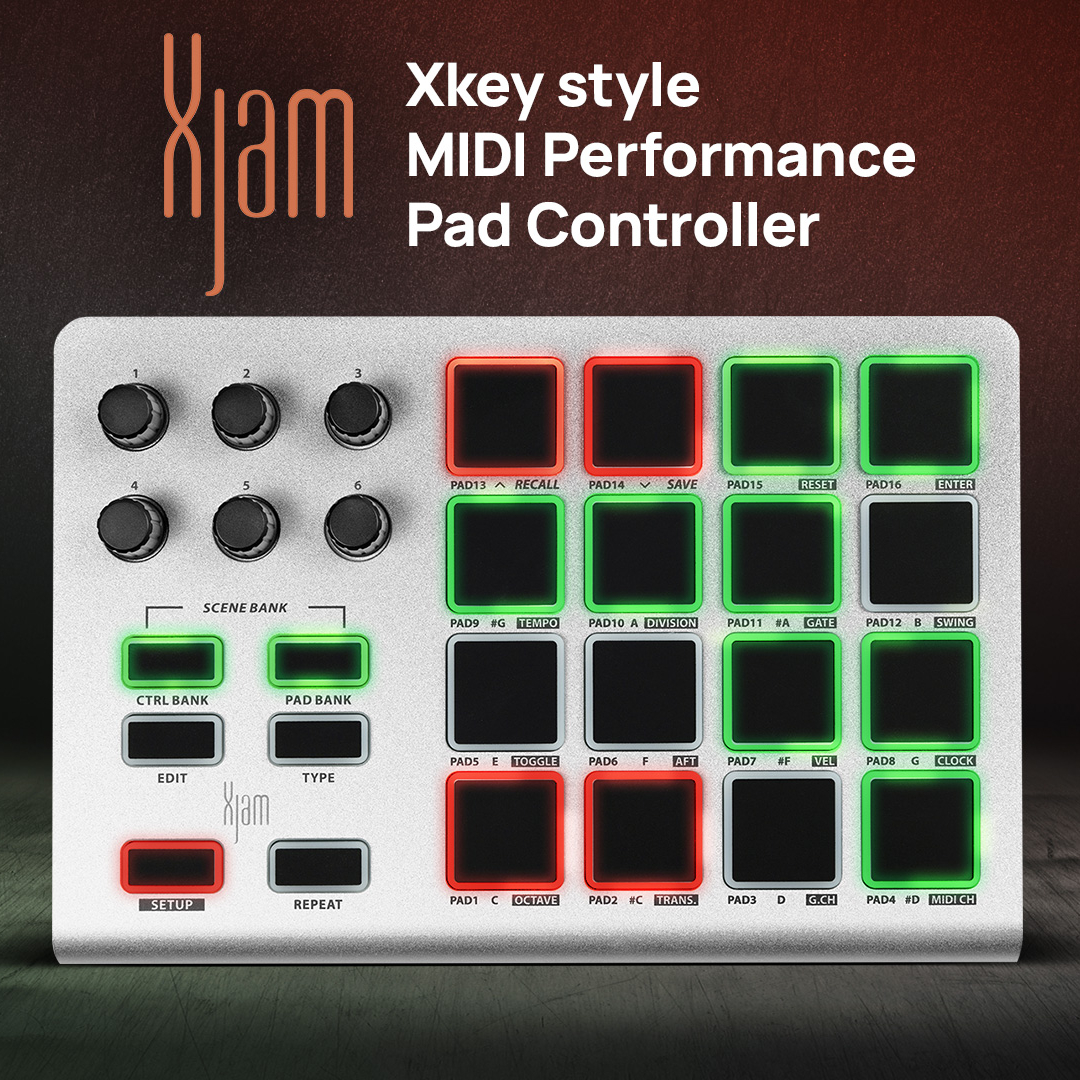

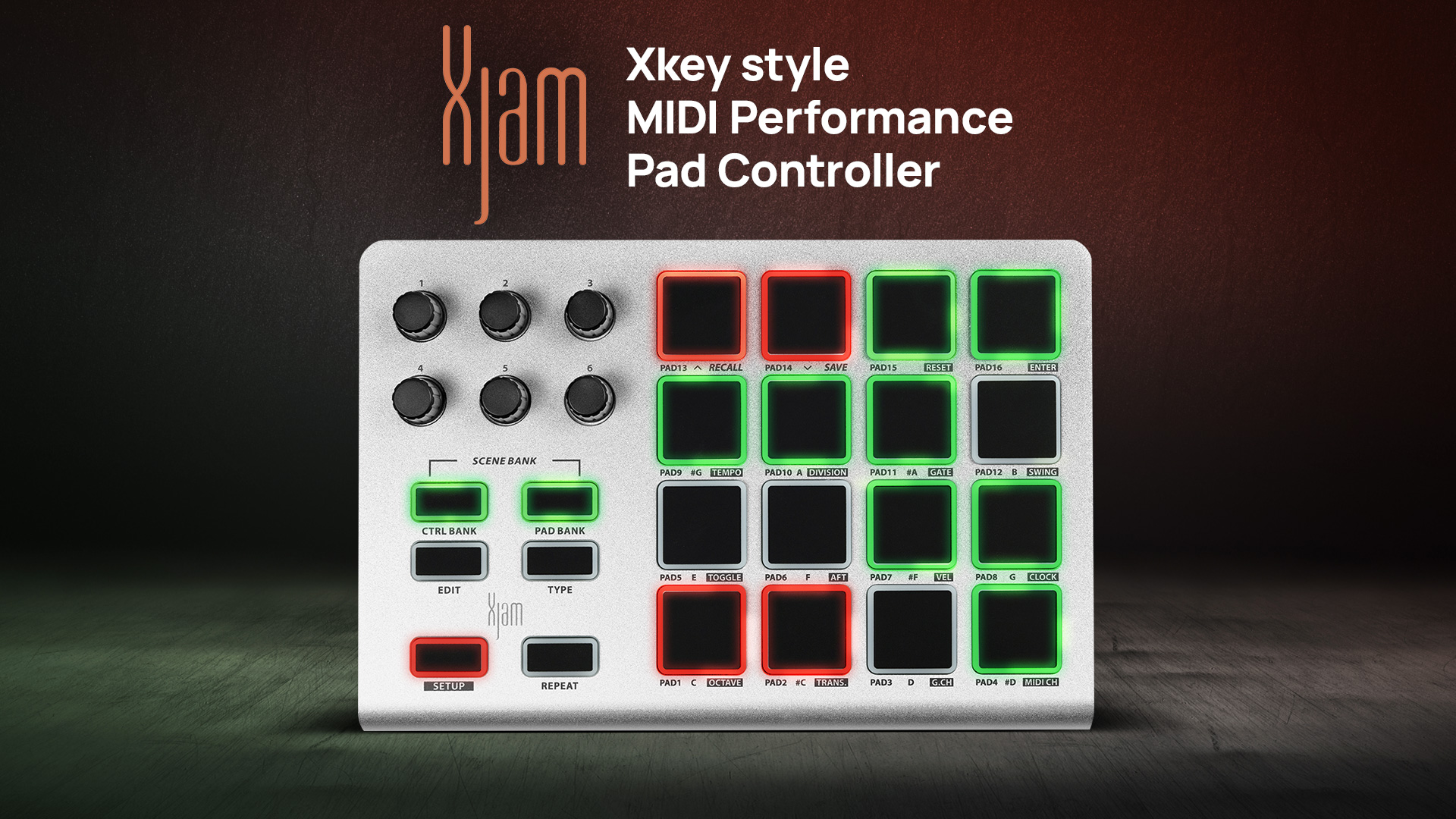

Meet the ultimate mobile pad controller

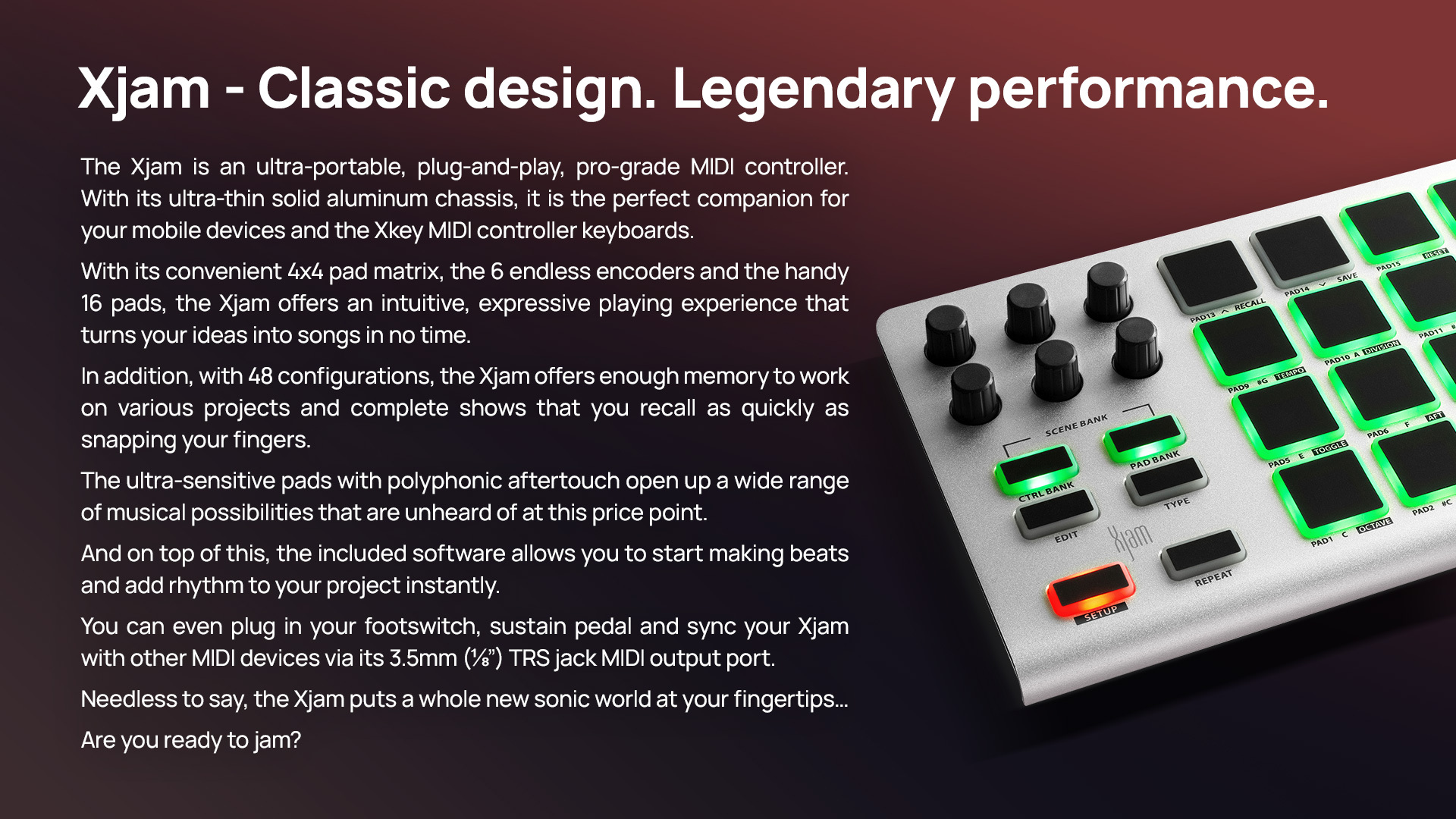

The Xjam is a full-fledged plug-and-play MIDI controller that puts you in total control no matter where you need to create. You will not sacrifice features & ease of use for mobility & elegant design. Due to its solid aluminum chassis, the Xjam is portable and ideal for use outside of the studio on mobile devices.

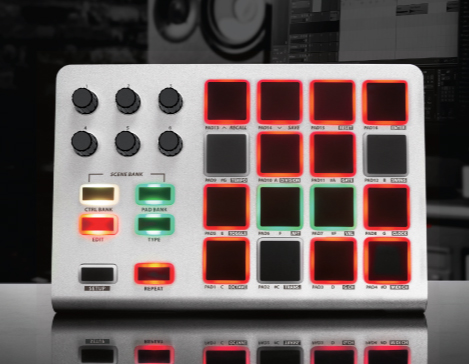

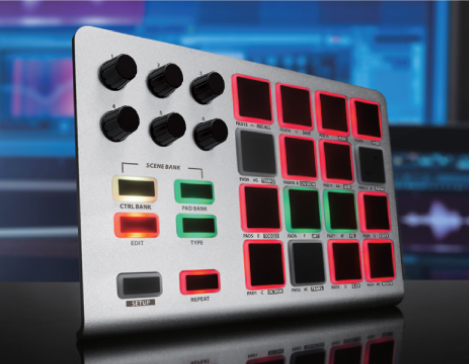

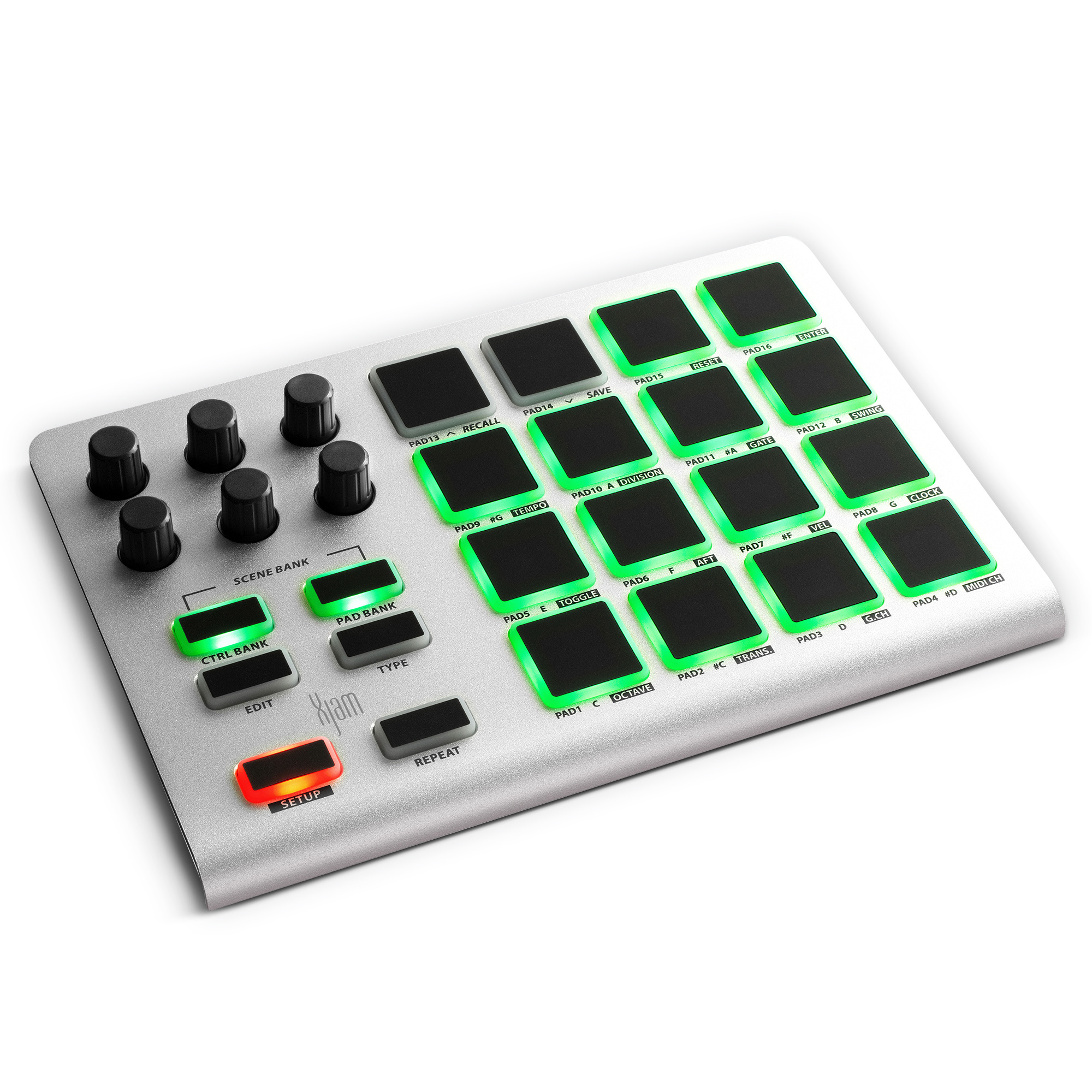

With a 4x4 pad matrix, the 6 endless encoders and the smooth 16 pads, the Xjam provides a pleasant and expressive playing experience. In addition, the controller offers 48 configurations instead of the usual 16 scenes to save.
Its smooth and ultra-sensitive pads with polyphonic aftertouch are as versatile as the Xjam itself. The 16 RGB pads also send MIDI CC, MIDI Program Change or MMC messages. There are also 6 high-quality endless encoders on board, which can be used in a variety of ways. In addition to controlling MIDI CC messages, the encoders can be assigned to send pitch, MIDI program change messages or even aftertouch messages. The Xjam comes with a powerful editor software for perfect adaption to your needs. There is also a TRS-MIDI Out socket to send signals to external sound generators.
Feature Packed
Xjam is packed with cool features to enable mobile musicians to custom control their instruments.
Portable

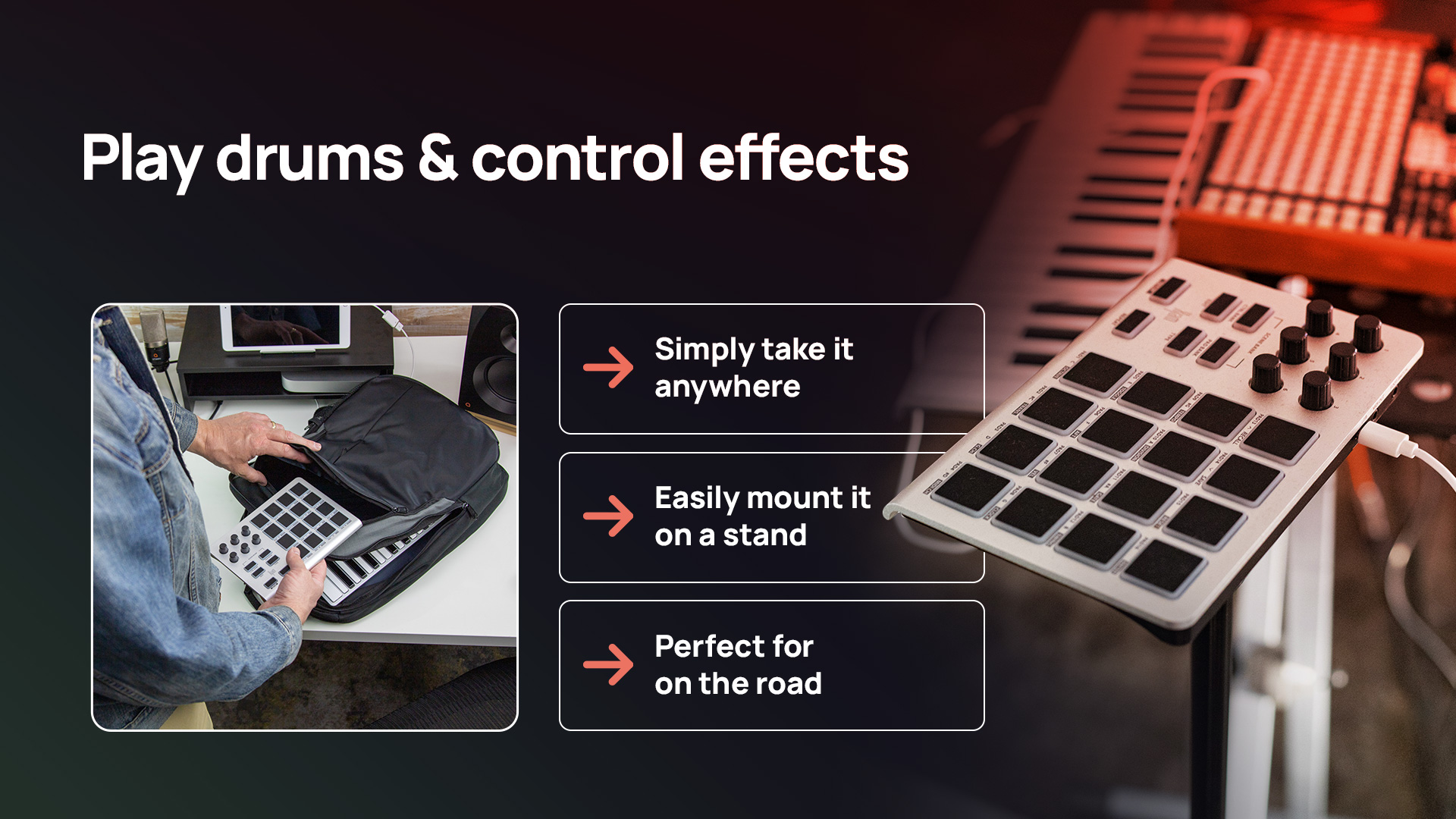

Great for the road & any mobile applications or where space constraints are an issue. Play drums & control effects with the Xjam. Everything is right there for building any style of track, anywhere you feel the inspiration. Made for travelers and mobile users. Fits in any bag or case!

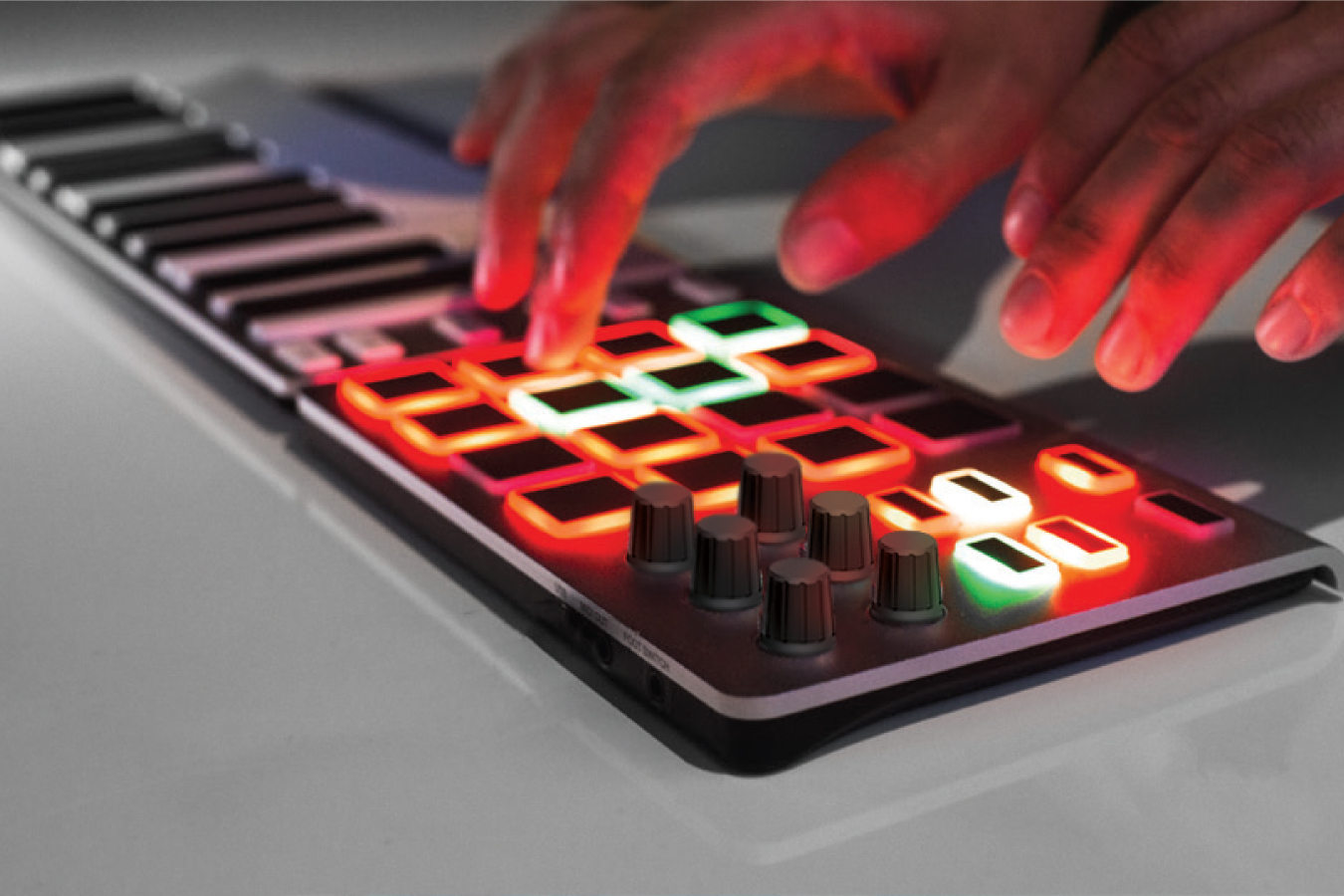

Live Performance
The velocity and pressure-sensitive pads are great for playing virtual instruments live on stage. Plus, the pads offer “after touch” that adds new levels of expression and control.
Gallery
Great For Live Shows
The velocity & pressure-sensitive pads are great for playing virtual instruments live onstage. Plus, the pads offer after touch that adds a whole different level of expression & control for that extra element to live or studio performance.
Portable
It has the same appearance & ultra-mobile, slim design as its older sibling the Xkey. Great for the road & any mobile applications or where space constraints are an issue. The Xjam is feature packed to enable you to custom control your instruments.
Feature Packed
In order to get you started right out of the box, the Xjam ships with a powerful software package for professional recording, creation of your own songs, mixing of any audio content and much more. The following applications are currently included: AVID Pro Tools, Cubasis LE, Bitwig Studio 8-Track, and WaveLab LE.

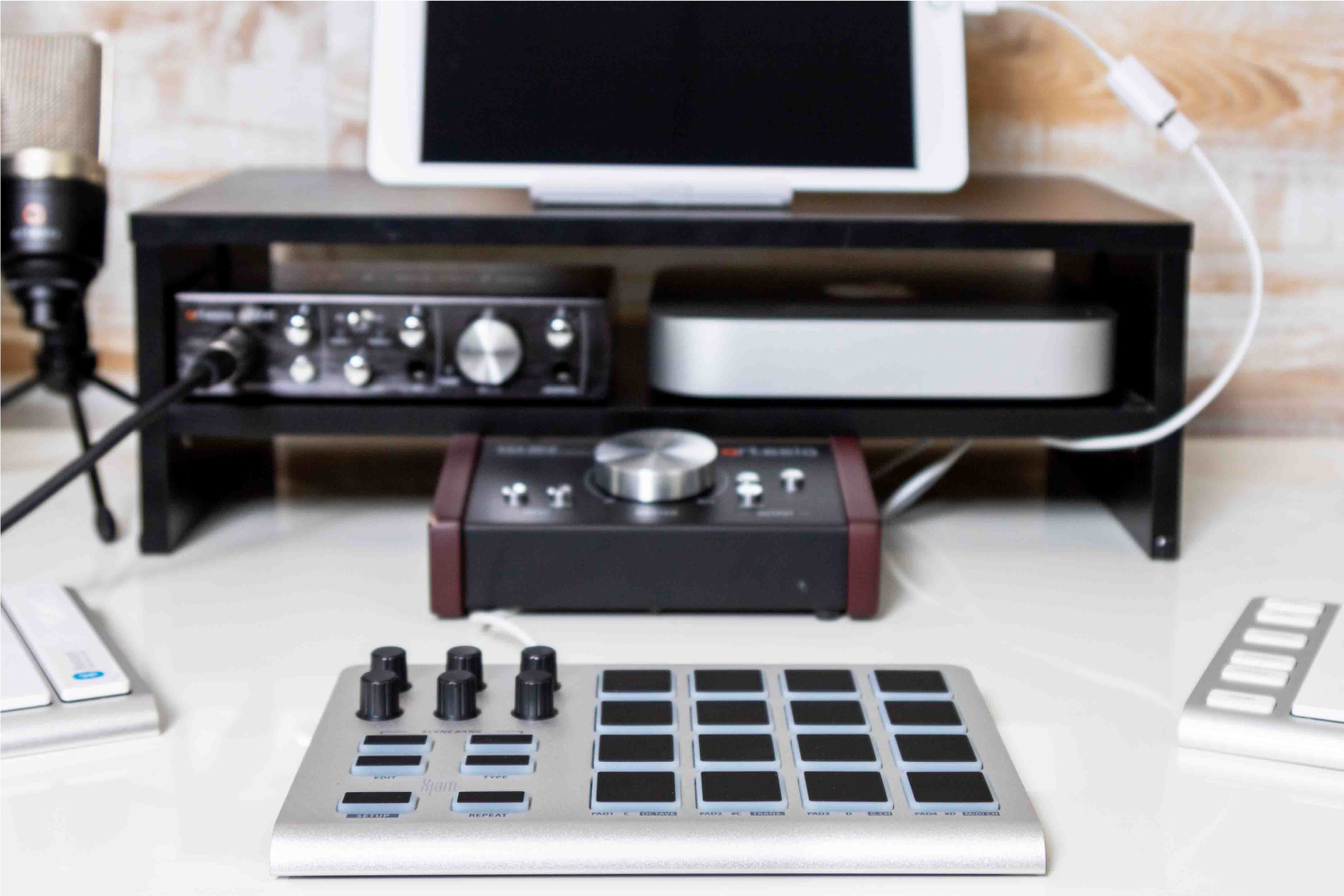

Music Creation Station

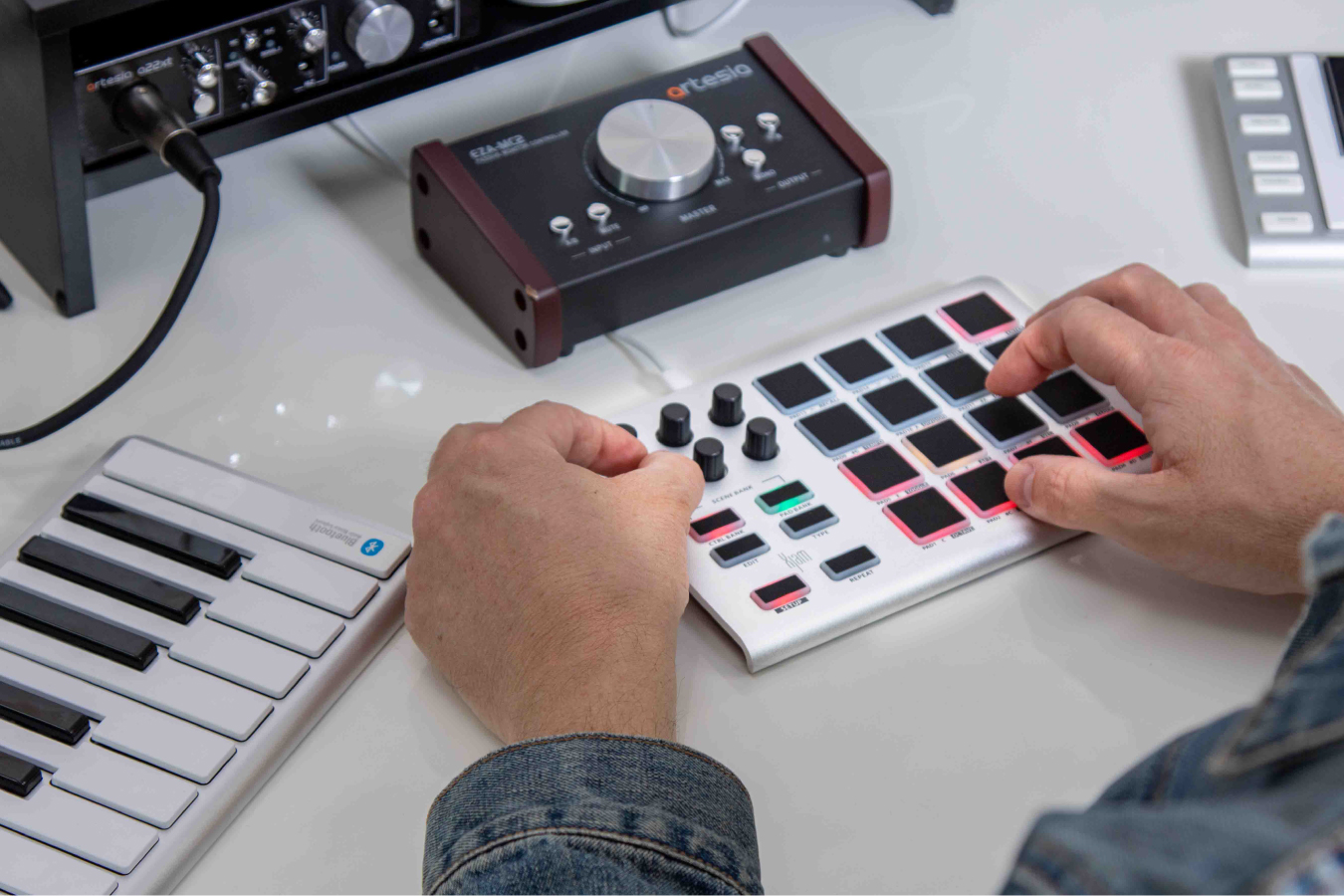

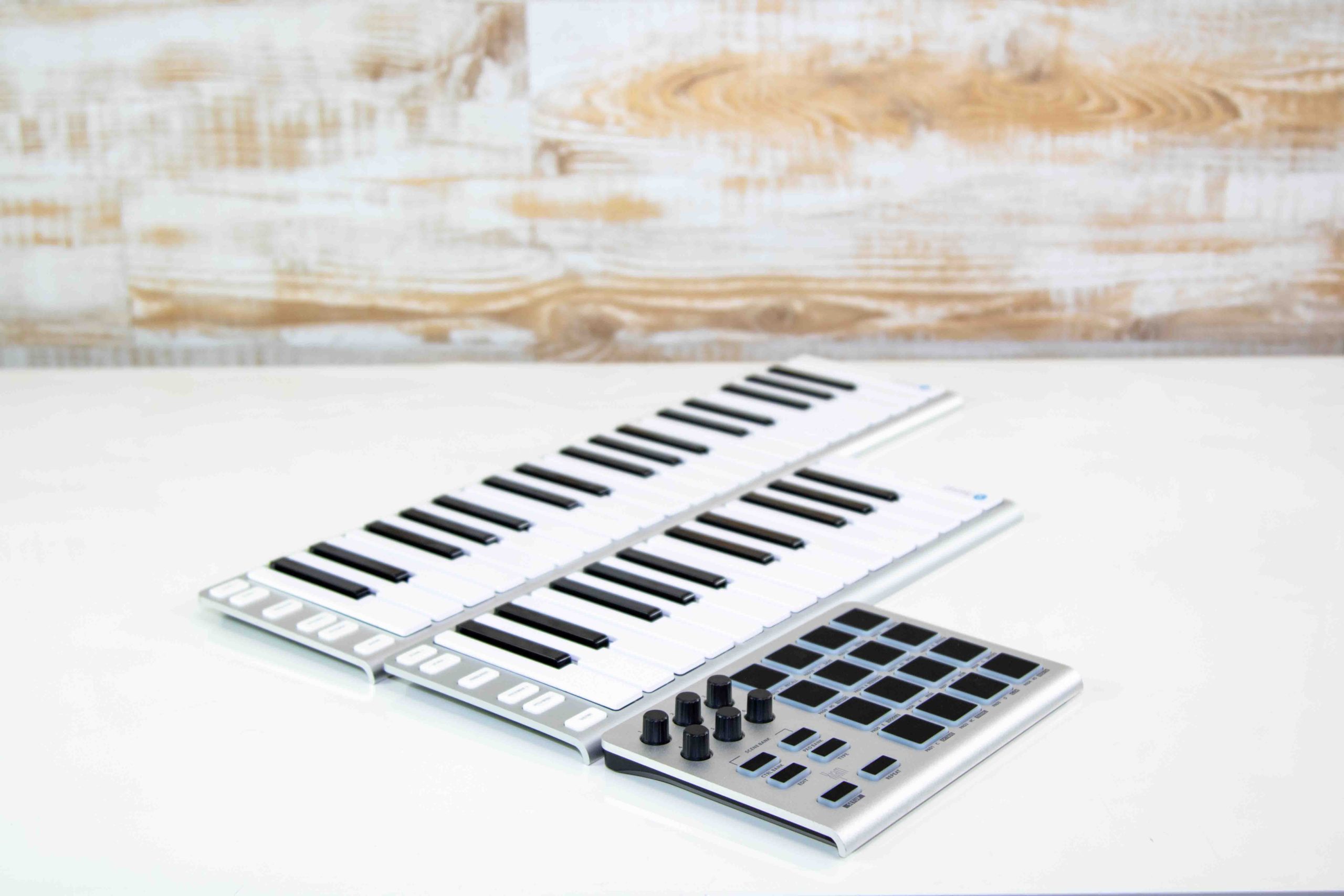

Add the Xkey and you will have a full mobile music creation station. Play melodies with the award winning Xkey ultra mobile keyboard controller. Play drums & control effects with the Xjam. Everything's right there for building any style of track, anywhere you feel the inspiration.

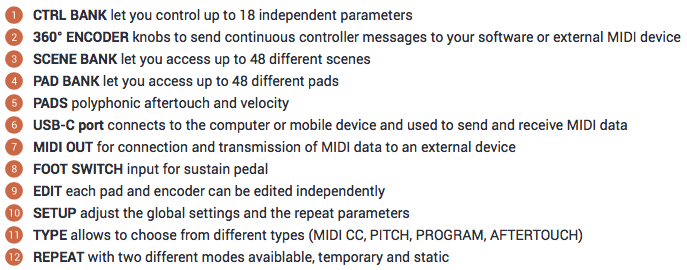

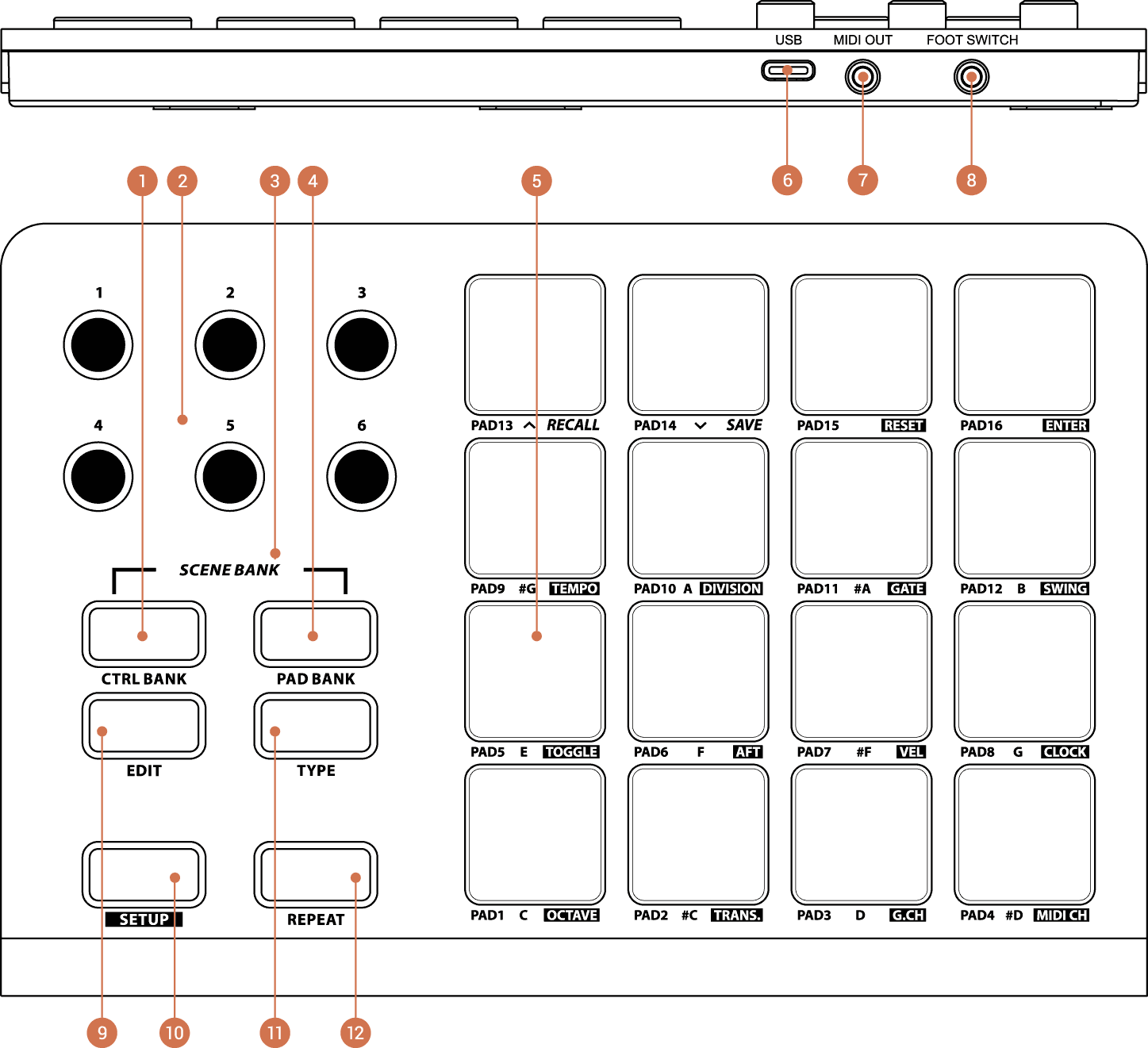

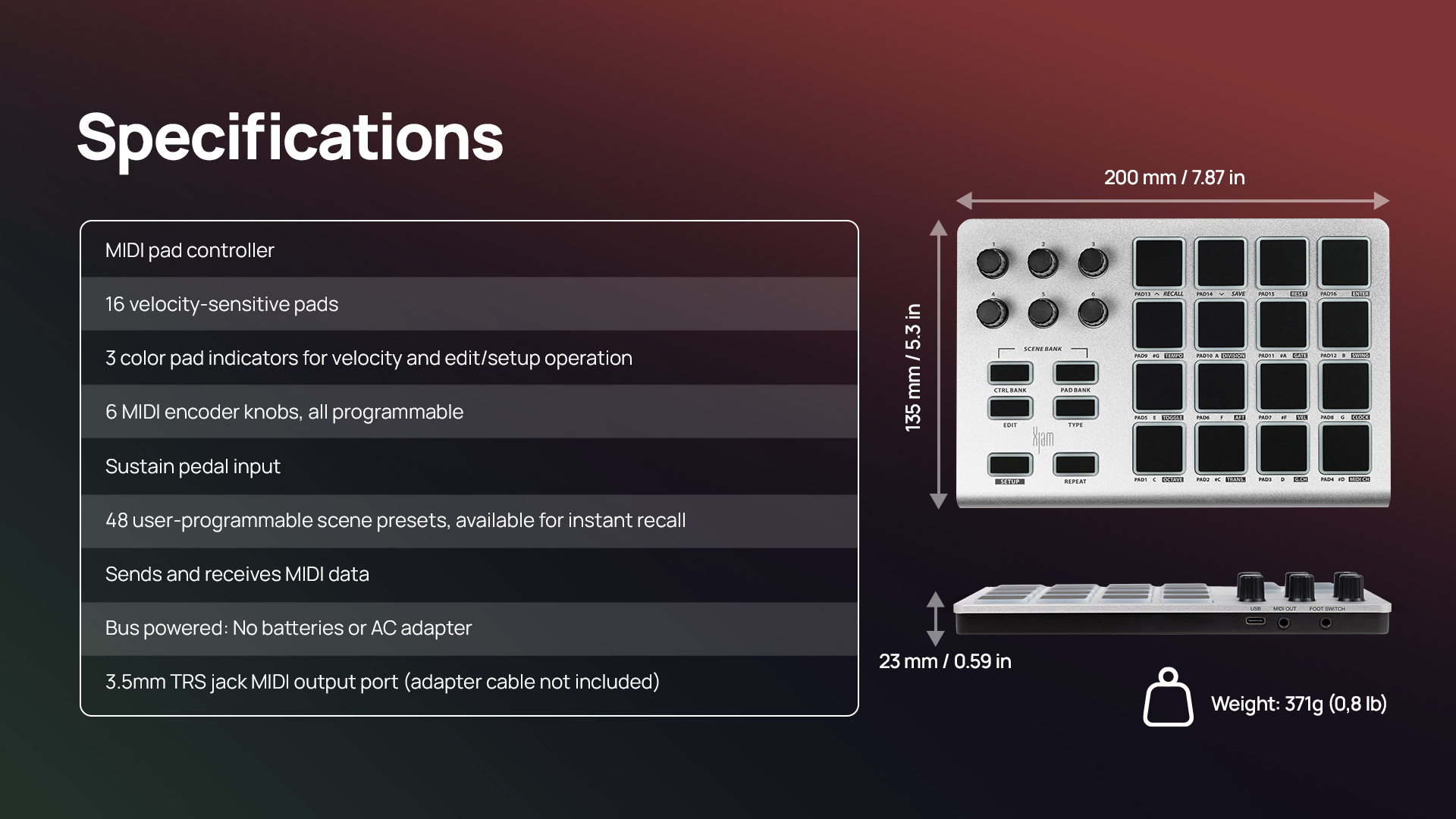

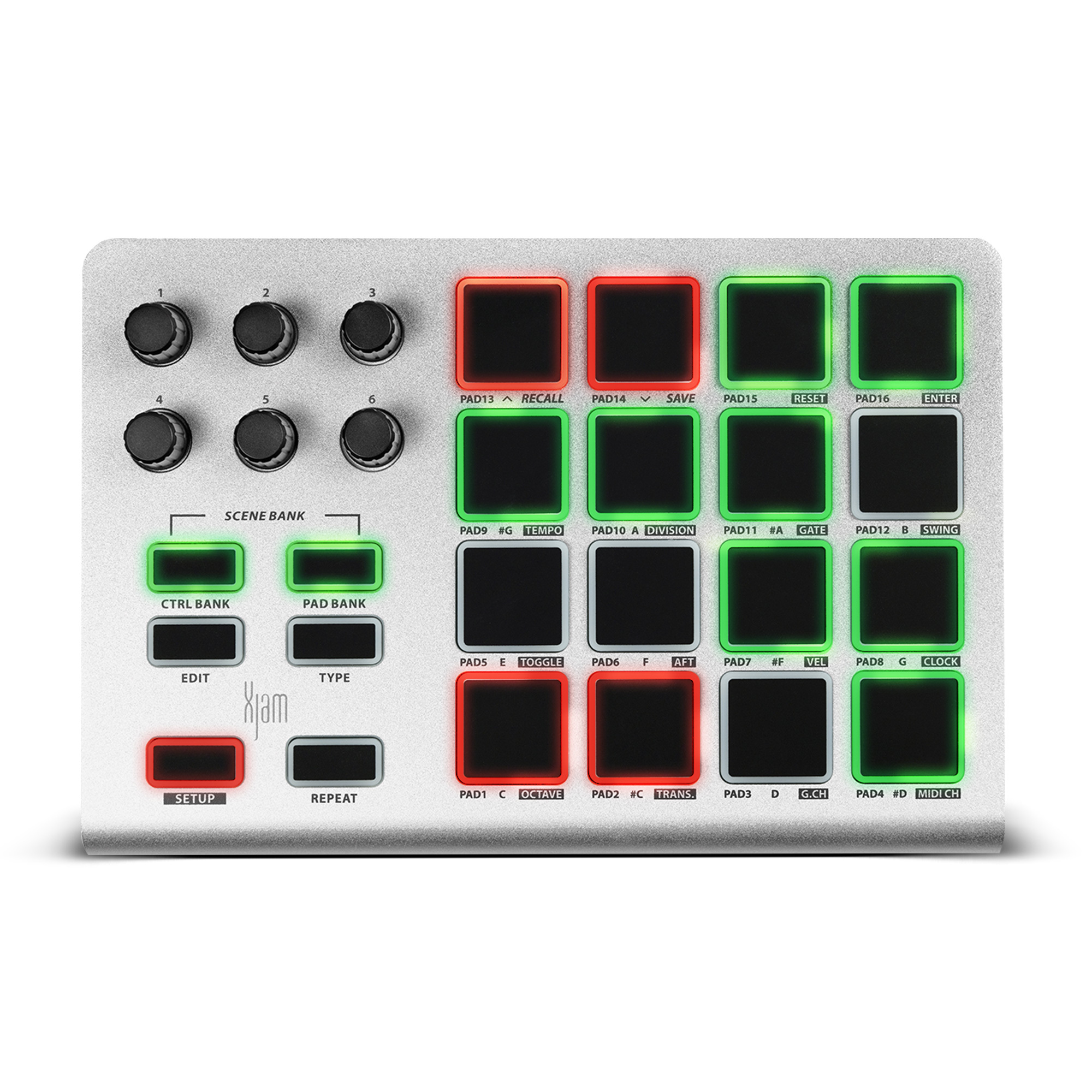

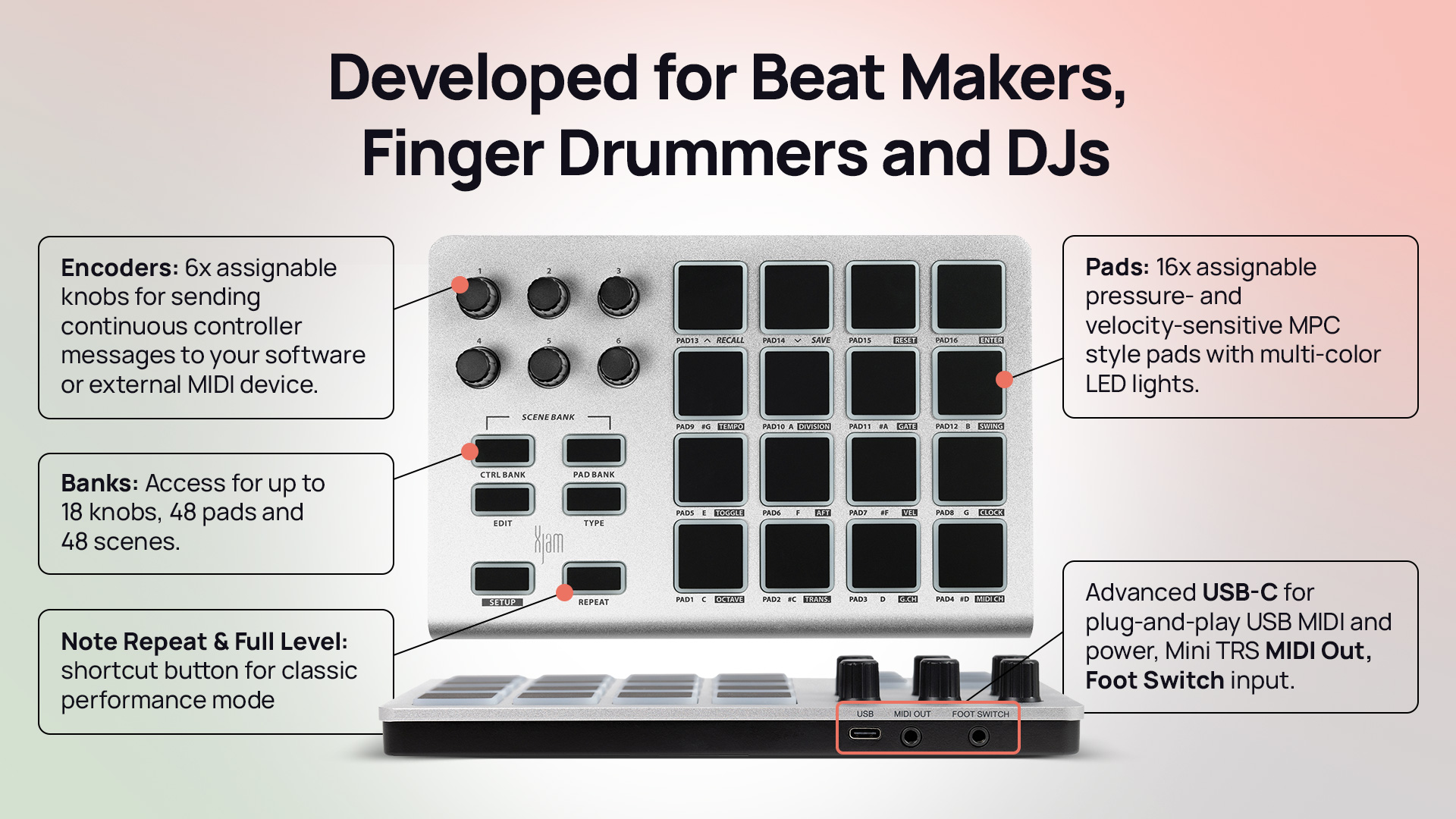

- 16 pressure-sensitive pads with bi-color LEDs & velocity touch.
- 1 pad bank buttons with bi-color LED to switch 3 independent banks of the pad.
- Note repeat: On/Off 6 encoders to send continuous controller messages.
- 1 bank button with bi-color LEDs to switch 3 independent banks of the pot.
- Edit button (single LED for each pad or encoder to change the note number or cc value.
- Type button with bi-color LEDs to set encoder cc/pitch/after touch or pad note/program/MMC.

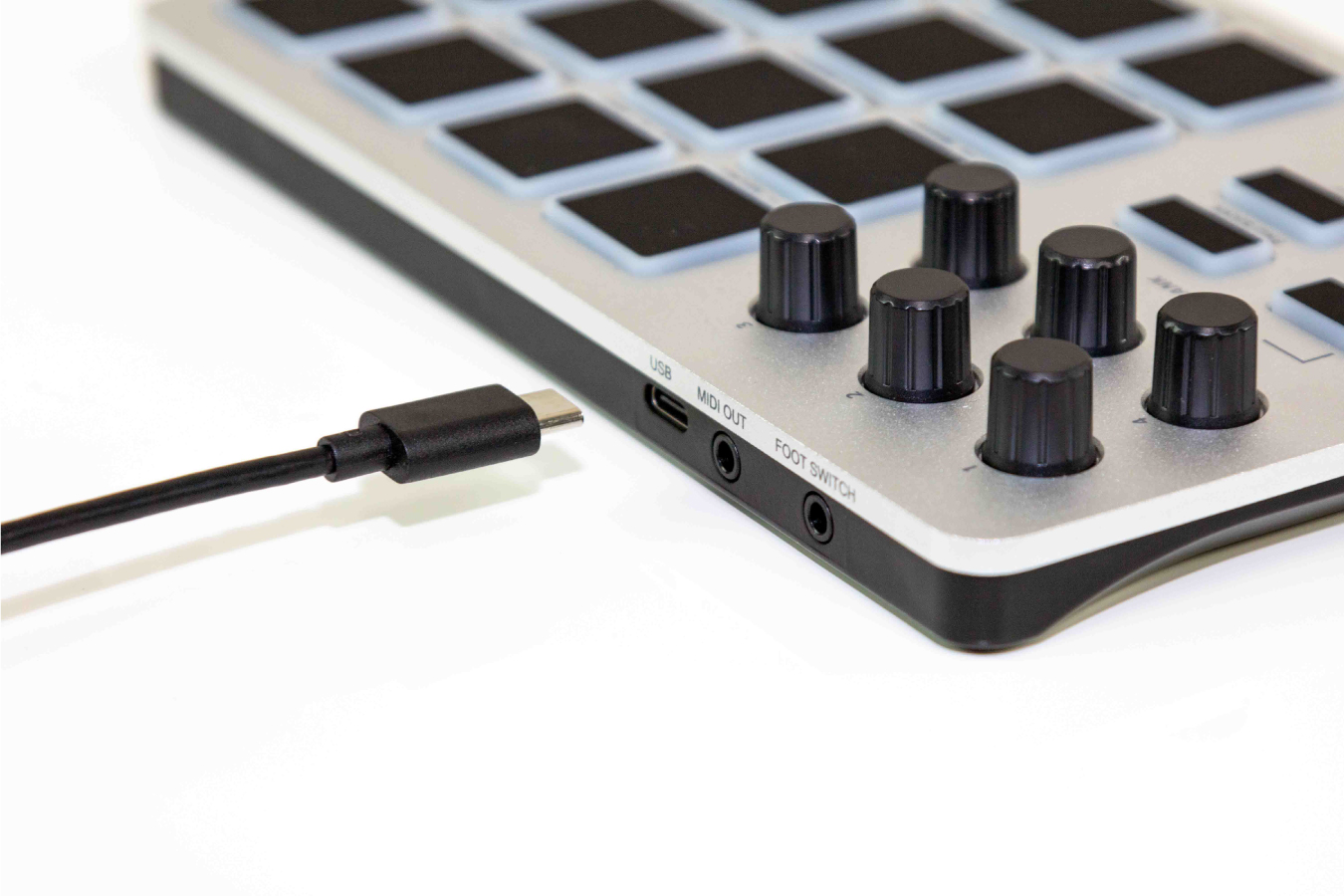

- USB to host.
- TRS MIDI out.
- Foot switch.
- Global or pad config.
- Save/recall 1-48 settings.
- Clock source: internal/external.
- Gate time.
- Swing.
- Assigned tempo: 20-280.
- After touch: On/Off.
- Note on/off: toggle / momentary.
- Velocity curve: fixed / curved.
- Note octave : -3 to +4
- Note transpose: -12 to +12
- Global midi channel: 1-16
- Pad midi channel: 1-16

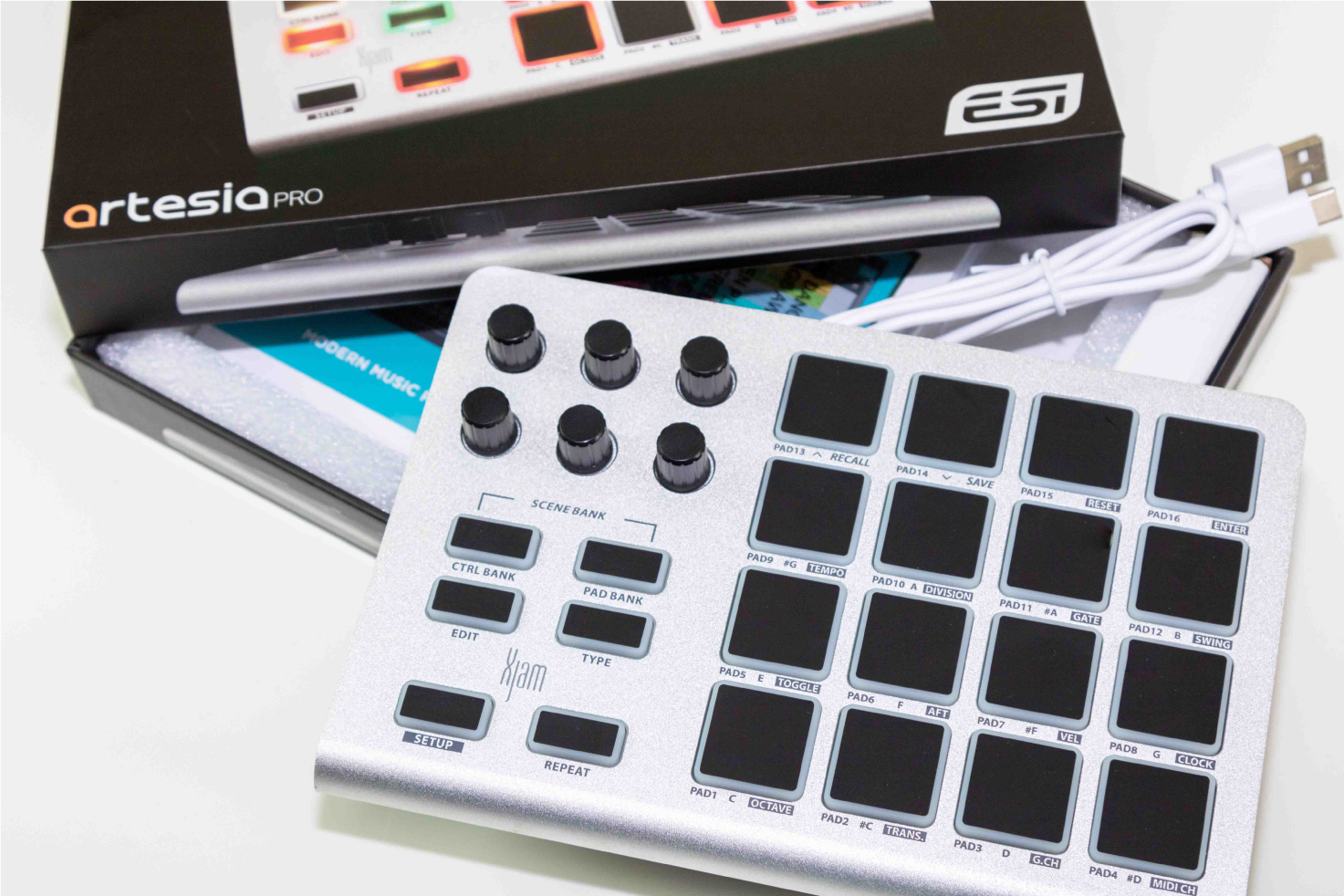

- Xjam
- Micro USB cable
- Quick Start Guide
- Bitwig Studio 8-Track Recording Software
- Cubasis LE3 makes recording, editing, and mixing a breeze, no matter where you are, right there on your iPhone or iPad.
- Wavelab LE is an easy-to-use audio mastering and editing program that turns your PC into a studio.
